Outdoor Figure 8 Fiber Cable GYTC8A

Outdoor Figure 8 Fiber Cable GYTC8A

Outdoor Figure 8 Fiber Cable GYTC8A

Product Details:

Place of Origin: shenzhen
Brand Name: Neutral
Certification: CE,ROHS,ISO
Model Number: GYTC8A

Payment & Shipping Terms:

Minimum Order Quantity: 5KM
Price: 0.25-4
Packaging Details: 1KM/REEL
Delivery Time: 7-14days
Payment Terms: T/T Western Union
Supply Ability: 50KM/WEEK
Detailed Product Description
Product Name: Outdoor Figure 8 Fiber Cable

Outdoor Figure 8 Fiber Cable

Outdoor Figure 8 Fiber Cable GYTC8A



·Description

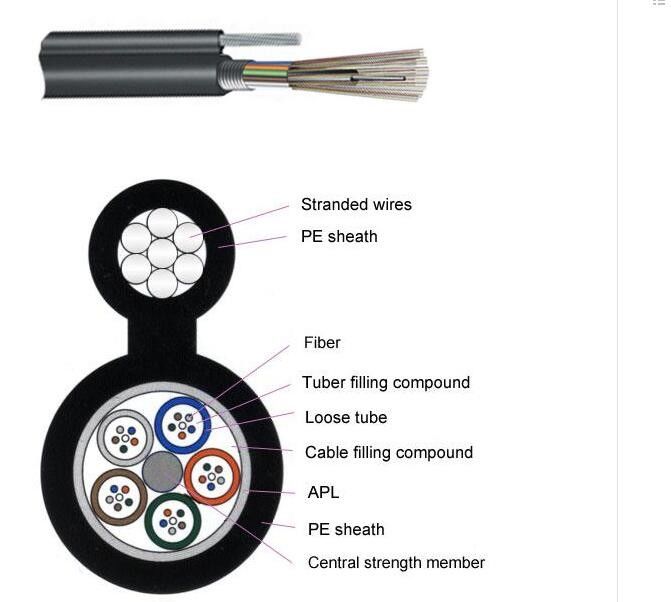

The fibers,  250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

·Characteristics

        · High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
             installation cost.

         · Good mechanical and temperature performance

        · High strength loose tube that is hydrolysis resistant

        · Special tube filling compound ensure a critical protection of fiber

        · The following measures are taken to ensure the cable watertight:

                - Steel wire used as the central strength member

                - Loose tube filling compound

                - 100% cable core filling

                - APL moisture barrier

·Standards

          GYTC8A cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

·Optical Characteristics



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm





·Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term            N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTC8A-2~6

2~6

1

4

9.5×18.3

218

600/1500

300/1000

10D/20D

GYTC8A-8~12

8~12

2

3

9.5×18.3

218

600/1500

300/1000

10D/20D

GYTC8A-14~18

14~18

3

2

9.5×18.3

218

600/1500

300/1000

10D/20D

GYTC8A -20~24

20~24

4

1

9.5×18.3

218

600/1500

300/1000

10D/20D

GYTC8A-26~30

26~30

5

0

9.5×18.3

218

600/1500

300/1000

10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
