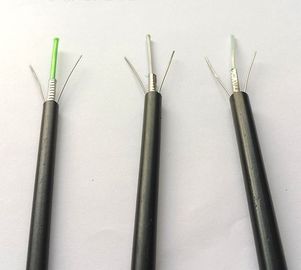

Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW

Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW

    • Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW
    • Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW
    • Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW
    • Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW
  • Single Mode Central Loose Tube Outdoor 12core Armoured Fiber Optic Cable SM GYXTW

    Product Details:

    Place of Origin: shenzhen
    Brand Name: Neutral
    Certification: CE,ROHS,ISO
    Model Number: GYXTW12c

    Payment & Shipping Terms:

    Minimum Order Quantity: 5KM
    Price: 0.14-2
    Packaging Details: 1KM/REEL
    Delivery Time: 7-14days
    Payment Terms: T/T Western Union
    Supply Ability: 30KM/WEEK
    Contact Now
    Detailed Product Description
    Product Name: Outdoor 12core ArmouredFiber Optic Cable SM

    Single Mode Central Loose Tube Outdoor 12core Amoured Fiber Optic Cable SM GYXTW



    GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility

    required for today's most demanding installations, including direct buried. The metallic armor is used when

    mechanical protection is desired.

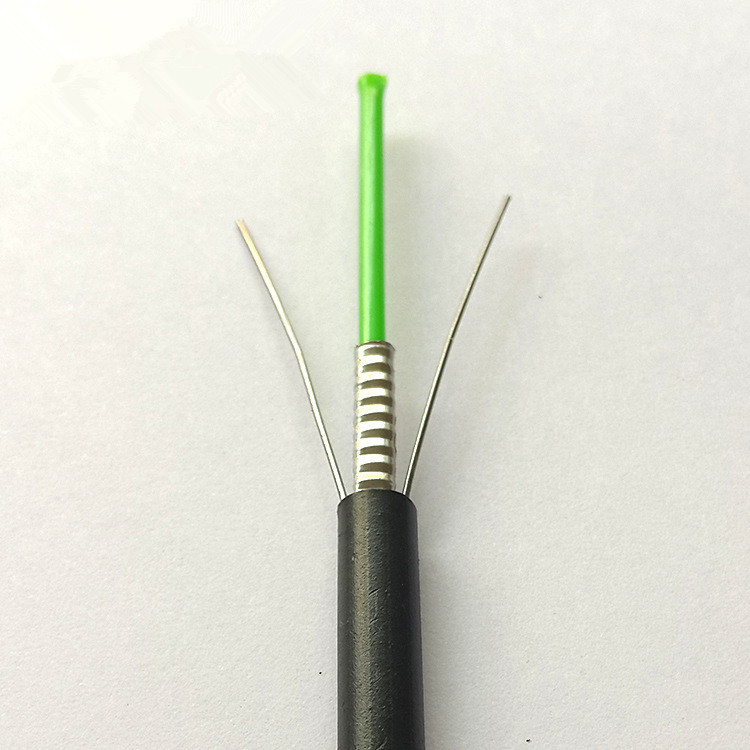

    Product Construction:

    Fiber:

    2-24 fiber

    Uni-loose tube gel-filled

    Strength Member:

    Steel Wire

    Armor:

    Corrugated steel tape



    Outer Jacket:

    Black UV Polyethylene(PE)

    Features:

    • Uni-tube gel-filled construction for superior fiber protection.
    • Metallic armor to protect cable from rodent attack and mechanical damage.
    • Embedded steel wire provide desirable tensile strength and crush resistance.
    • Compact, easy to install.
    • UV and waterproof design.

    Application:

    • Interbuilding voice or data communication.
    • Installed in duct, underground conduit.
    • FTTx.

    Optical Characteristics:



    Fiber Type

    G.652

    G.655

    50/125^m

    62.5/125^m

    Attenuation

    (+20X)

    850 nm





    <3.0 dB/km

    <3.3 dB/km

    1300 nm





    <1.0 dB/km

    <1.0 dB/km

    1310 nm

    <0.36 dB/km

    <0.40 dB/km





    1550 nm

    <0.22 dB/km

    <0.23 dB/km





    Bandwidth

    850 nm





    >500 MHz-km

    >200 Mhz-km

    1300 nm





    >500 MHz-km

    >500 Mhz-km

    Numerical Aperture





    0.200±0.015 NA

    0.275±0.015 NA

    Cable Cut-off Wavelength cc

    <1260 nm

    <1450 nm









    Structure and Technical Specifications



    Fiber

    Count

    Nominal

    Diameter

    (mm)

    Nominal

    Weight

    (kg/km)

    Allowable Tensile Load

    (N)

    Allowable Crush Resistance(N/100mm)

    Short Term

    Long Term

    Short Term

    Long Term

    2~12

    8.6

    95

    1500

    600

    1000

    300

    14~24

    9.0

    110

    1500

    600

    1000

    300

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for

              more detailed information.
