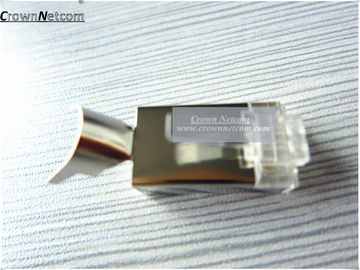

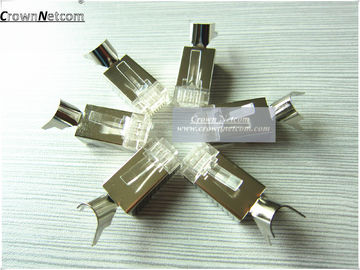

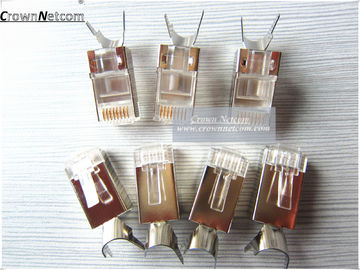

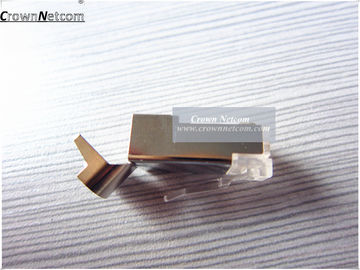

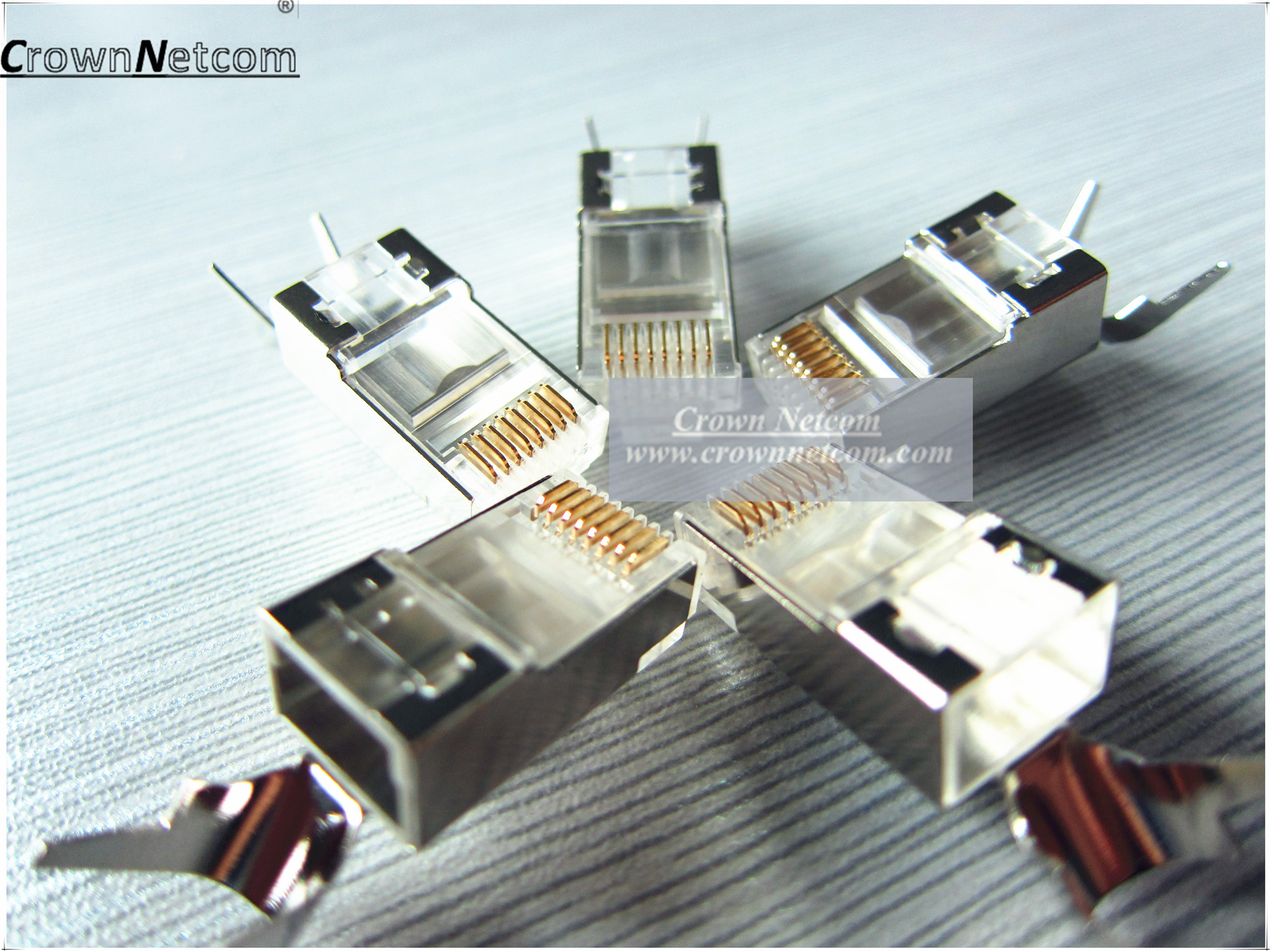

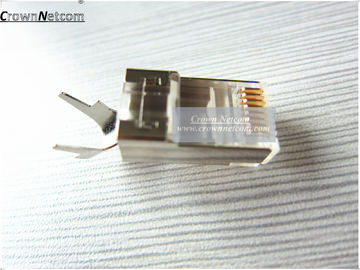

RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug

RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug

    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
    • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
  • RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug

    Product Details:

    Place of Origin: shenzhen
    Brand Name: Neutral/OEM (info at crownnetcom dot com)
    Certification: CE,ROHS,ISO
    Model Number: CNCRJ45CAT7P

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: 0.5-0.7
    Packaging Details: PP bag
    Delivery Time: 3-7days (info at crownnetcom dot com)
    Payment Terms: T/T Western Union
    Supply Ability: 300000pcs/week
    Contact Now
    Detailed Product Description
    Type: RJ45 Application: RF
    Gender: Male



    RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug



    SPECIFICATIONS
    RoHS Compliant.
     Meet FCC CFR 47 part 68 and IEC 603-7.
     Housing: Polycarbonate (PC), UL 94-0 Rated.
     Contact Blade: Phosphor bronze, selective Gold over Nickel plating.

    MECHANICAL
     Plug Mating Life: 750-Cycle.
     Cable to Plug Tensile Force: 20 lbs (89N)
    Type of Contact Blade: 2-Prong for stranded wires, Angled 2-Prong for solid wires, 3-Prong for both stranded & solid wires.

    ELECTRICAL
    Current Rating: 1.5Amps.
    Insulation Resistance: 500 megohms minimum.
    Contact Resistance: 20 milliohms maximum.
    Dielectric Strength Voltage: 1000V AC (RMS 60Hz).


    FEATURES

     It has solved the problem of how to separate wires for assignment without harming Category 6 performance. We proudly introduce the 2-piece type fully shielded plugs.

    EASY-TO-ASSEMBLE
     All you have to do is strip the cable, insert the wires into our specially designed Insert Unit, cut the surplus wires and snap the full Insert Unit into the plug housing.

    MUCH BETTER NEXT PERFORMANCE
     With the Insert Unit you could only untwist a very short length of wire (7mm), which means you will get better NEXT for patch cord. In addition,
    our specially designed strain relief boot  holds the cable firmly without flattening or affecting twisted wires.

    RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug

    RJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 PlugRJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 PlugRJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 PlugRJ45 Cat 7 Connector 8P8C Shielded Connectors Cat 7 Plug
