Indoor Multi Purpose Distribution Fiber Cable

Indoor Multi Purpose Distribution Fiber Cable

Indoor Multi Purpose Distribution Fiber Cable

Product Details:

Place of Origin: shenzhen
Brand Name: Neutral
Certification: CE,ROHS,ISO
Model Number: Multi Purpose Distribution Fiber Cable

Payment & Shipping Terms:

Minimum Order Quantity: 5KM
Price: 0.25-4
Packaging Details: 1KM/REEL
Delivery Time: 7-14days
Payment Terms: T/T Western Union
Supply Ability: 50KM/WEEK
Detailed Product Description
Product Name: Indoor Multi Purpose Distribution Fiber Cable

Indoor Multi Purpose Distribution Fiber Cable

Indoor Multi Purpose Distribution Fiber Cable

Description:

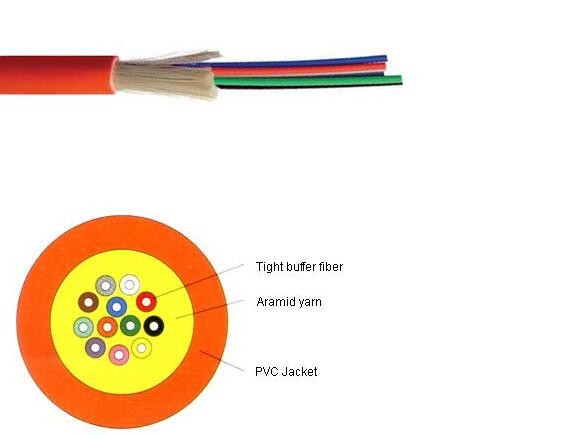

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket

indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.

Application:

 Data communication
        · Making connector
        · Installation: riser, plenum, etc.
        · Places where waterproof is not strictly required
        · Making jumper, pigtail and building distribution



Standards:

Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR



Cable Code:




  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
 Cable Diameter (mm) 4.1±0.25 4.8±0.25 5.1±0.25 5.6±0.25 5.8±0.25 6.2±0.25
 Cable Weight (kg/km) 11.0 18.4 22 24 27 31
 TBF Diameter 900±50μm

Mechanical Characteristics:




Tensile Strength  Long term 200N
Short term 660N
Crush Resistance  Long term 300N/100mm
 Short term 1000N/100mm
Bending Radius  Dynamic

20×D (Cable Diameter)

 Static

10×D (Cable Diameter)

Optical Charateristics:




  50/125μm 62.5/125μm G.652 G.655
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm     ≤0.45dB/km ≤0.50dB/km
@1550nm     ≤0.30dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
 Numerical Aperture 0.200±0.015NA 0.275±0.015NA
 Cable Cut-off Wavelength λcc     ≤1260nm ≤1480nm
Attenuation at temperature cycling Δα(-20℃~+85℃) @1300nm ≤0.50dB/km ≤0.50dB/km
@1550nm     ≤0.20dB/km ≤0.20dB/km

Environmental Characteristics:

 Transport Temperature -20℃~+60℃
 Storage Temperature -20℃~+60℃
 Installation Temperature -5℃~+50℃
 Operating Temperature -20℃~+60℃

Indoor Multi Purpose Distribution Fiber Cable
