    Product Details:

    Place of Origin: shenzhen
    Brand Name: Neutral
    Certification: CE,ROHS,ISO
    Model Number: FTTH DROP

    Payment & Shipping Terms:

    Minimum Order Quantity: 10KM
    Price: 0.25-1
    Packaging Details: 1KM/REEL
    Delivery Time: 7-14days
    Payment Terms: T/T Western Union
    Supply Ability: 50KM/WEEK
    Contact Now
    Detailed Product Description
    Product Name: FTTH Drop Cable

    FTTH Drop Cable Optical Fiber Cables



    FTTH Drop Cable Optical Fiber Cables

    ·Description

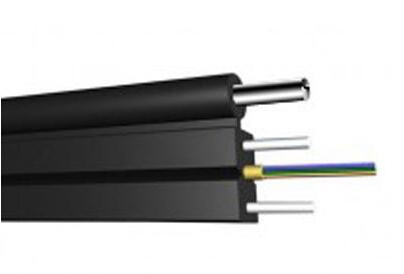

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
    ·Characteristics
            · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
              transmission property;
            · Two parallel FRP strength members ensure good performance of crush resistance to protect the
              fiber;
            · Single steel wire or massagers as the additional strength member ensures good performance of           tensile strength;
            · Simple structure, light weight and high practicability;
            · Novel flute design, easily strip and splice, simplify the installation and maintenance;
            · Low smoke, zero halogen and flame retardant sheath.
    ·Optical Characteristics


    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20℃)

    @850nm





    ≤3.5 dB/km

    ≤3.5 dB/km

    @1300nm





    ≤1.5 dB/km

    ≤1.5 dB/km

    @1310nm

    ≤0.45 dB/km

    ≤0.50 dB/km





    @1550nm

    ≤0.30 dB/km

    ≤0.50dB/km





    Bandwidth (Class A)

    @850nm





    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm





    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelengthλcc

    ≤1260nm

    ≤1480nm





    ·Technical Parameters
    Fiber Count Cable Diameter
    mm
    Cable Weight
    kg/km
    Tensile Strength
    Long/Short Term
    N
    Crush Resistance
    Long/Short Term
    N/100mm
    Bending Radius
    Static
    /Dynamic
    mm
    1 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
    2 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
    3 (2.0±0.2)×(5.6±0.2) 21 60/120 300/1000 15/30
    4 (2.0±0.2)×(5.6±0.2) 22 60/120 300/1000 15/30
    Storage/Operating Temperature : -20℃ to + 60℃
