    Product Details:

    Place of Origin: shenzhen
    Brand Name: Neutral
    Certification: CE,ROHS,ISO
    Model Number: JET Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 10KM
    Price: 0.25-1
    Packaging Details: 1KM/REEL
    Delivery Time: 7-14days
    Payment Terms: T/T Western Union
    Supply Ability: 50KM/WEEK
    Contact Now
    Detailed Product Description
    Product Name: Unitube Non-metallic Micro Cable

    Unitube Non-metallic Micro Cable Jet Cable
    Unitube Non-metallic Micro Cable Jet Cable


    ·Description

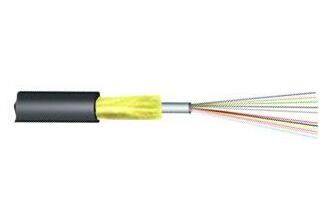

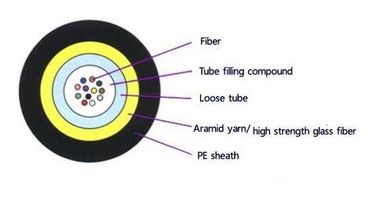

    The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

    ·Characteristics

            · Non-mental design can prevent the cable from radio interference and magnetic wave interference
            · Specially designed compact structure is good at preventing loose tubes from shrinking
            · Aramid yarn ensures good performance of tensile strength
            · Loose tube filling compound ensure good moisture resistance performance
            · Good flexibility
            · High dense fiber packed, small diameter and light weight; it's the better option for blowing
              installation process

    ·Application

            Adopted to backbone network, access network and fiber to the home.

    ·Optical Characteristics



    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20℃)

    @850nm





    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm





    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.36 dB/km

    ≤0.40 dB/km





    @1550nm

    ≤0.22 dB/km

    ≤0.23dB/km





    Bandwidth (Class A)

    @850nm





    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm





    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelengthλcc

    ≤1260nm

    ≤1480nm





    ·Technical Parameters

    Cable Type

    Fiber Count

    Cable Diameter

    mm

    Cable Weight kg/km

    Tensile Strength



    Long/Short Term N

    Crush Resistance



    Long/Short Term

    N/100mm

    Bending Radius



    Static
    /Dynamic

    mm

    JET 2~12

    2~12

    4.2±0.3

    12

    60/150

    300/1000

    10D/20D

    JET 14~24

    14~24

    4.6±0.3

    15

    60/150

    300/1000

    10D/20D

    JET 26~36

    26~36

    5.1±0.3

    18

    60/150

    300/1000

    10D/20D

    JET 38~48

    38~48

    5.6±0.3

    22

    60/150

    300/1000

    10D/20D

    Storage/Operating Temperature : -40℃ to + 70℃
