Product Details:

Place of Origin: shenzhen
Brand Name: Neutral
Certification: CE,ROHS,ISO
Model Number: GYTS

Payment & Shipping Terms:

Minimum Order Quantity: 10KM
Price: 0.25-4
Packaging Details: 1KM/REEL
Delivery Time: 7-14days
Payment Terms: T/T Western Union
Supply Ability: 50KM/WEEK
Detailed Product Description
Product Name: Outdoor Stranded Loose Tube Armored Fiber Cable Fibra Cable GYTY53

Outdoor Stranded Loose Tube Armored Fiber Cable Fibra Cable GYTY53

Outdoor Stranded Loose Tube Armored Fiber Cable Fibra Cable GYTY53

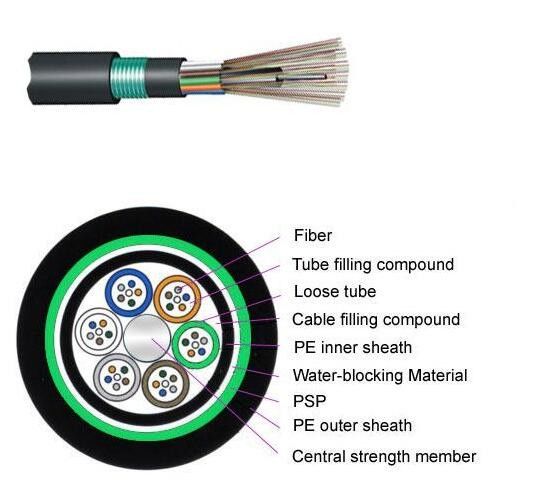

·Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

·Characteristics

        · Good mechanical and temperature performance

        · High strength looes tube that is hydrolysis resistant

        · Special tube filling compound ensure a critical protection of fiber

        · Crush resistance and flexibility

        · The following measures are taken to ensure the cable watertight:

                - Steel wire used as the central strength member

                - Loose tube filling compound

                - 100% cable core filling

                - PSP enhancing moisture-proof

                - Water-blocking material

·Standards

        GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

·Optical Characteristics



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm





·Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTY53-2~6

2~6

1

5

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-8~12

8~12

2

4

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-14~18

14~18

3

3

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-20~24

20~24

4

2

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-26~30

26~30

5

1

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-32~36

32~36

6

0

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-38~48

38~48

4

1

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-50~60

50~60

5

0

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-62~72

62~72

6

0

15.0

215

1000/3000

1000/3000

10D/20D

GYTY53-74~84

74~84

7

1

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-86~96

86~96

8

0

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-98~108

98~108

9

1

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-110~120

110~120

10

0

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-122~132

122~132

11

1

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-134~144

134~144

12

0

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-146~216

146~216





19.5

345

1000/3000

1000/3000

10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
