Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
    • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires
  • Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

    Product Details:

    Place of Origin: Shenzhen (info at crownnetcom.com)
    Brand Name: Neutral/OEM (info at crownnetcom dot com)
    Certification: CE,ROHS,ISO
    Model Number: CNCJMCT3

    Payment & Shipping Terms:

    Minimum Order Quantity: 100rolls
    Price: 0.051-0.069/m
    Packaging Details: box /wooden drum
    Delivery Time: 3-7days/500boxes (info at crownnetcom dot com)
    Payment Terms: T/T Western Union
    Supply Ability: 2000boxes/week
    Contact Now
    Detailed Product Description
    Minimum Quantity Order: 100Rolls Product Name: Cat3 Jumper Cable
    Cat3 Jumper Cable Conductor: Tin-copper/copper Cat3 Jumper Cable's Other Name: Cat3 Jumper Wire

    Telephone Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper Telecom Standard



    1.Outer jacket: PVC(Polyvinyl Chloride) in accordance with international standard.



    2.Conductor: solid bare copper, tinned copper, the conductor size can be 0.32mm/0.4/0.5/0.6/0.63/0.7mm



    3.Insulation: the copper wire which are parallel to each other, coated with polivinyl chloride  with Red/White,Yellow/Blue,Blue/White color ,etc.



    4. Cable assembly: 2 cores are twisted together to form a pair additional information for 0.6mm jumper wire



    Construction:

    Conductor Insulation
    Material Nom.O.D.(MM) Material Nom.O.D.(MM)
    Bare Copper/Tinned Copper 24AWG(0.5) HDPE 0.9
    Polyvinyl Chloride(PVC) 1.1



    ITEM Units Value
    0.4 0.5
    Conductor resistance,maximum,Mutual pairs capacitance ohm/km(20°C)
    nF/km
    148
          56
    95
    Dielectric strenth(DC test voltage for 1 min.) DC(V) 1000
    Insulation resistance,minimum Mohm/km 5000
    Impedance
    Delay
    ohm

    s/km
    100±15
    1MHz≤6.4
    10MHz≤5.7

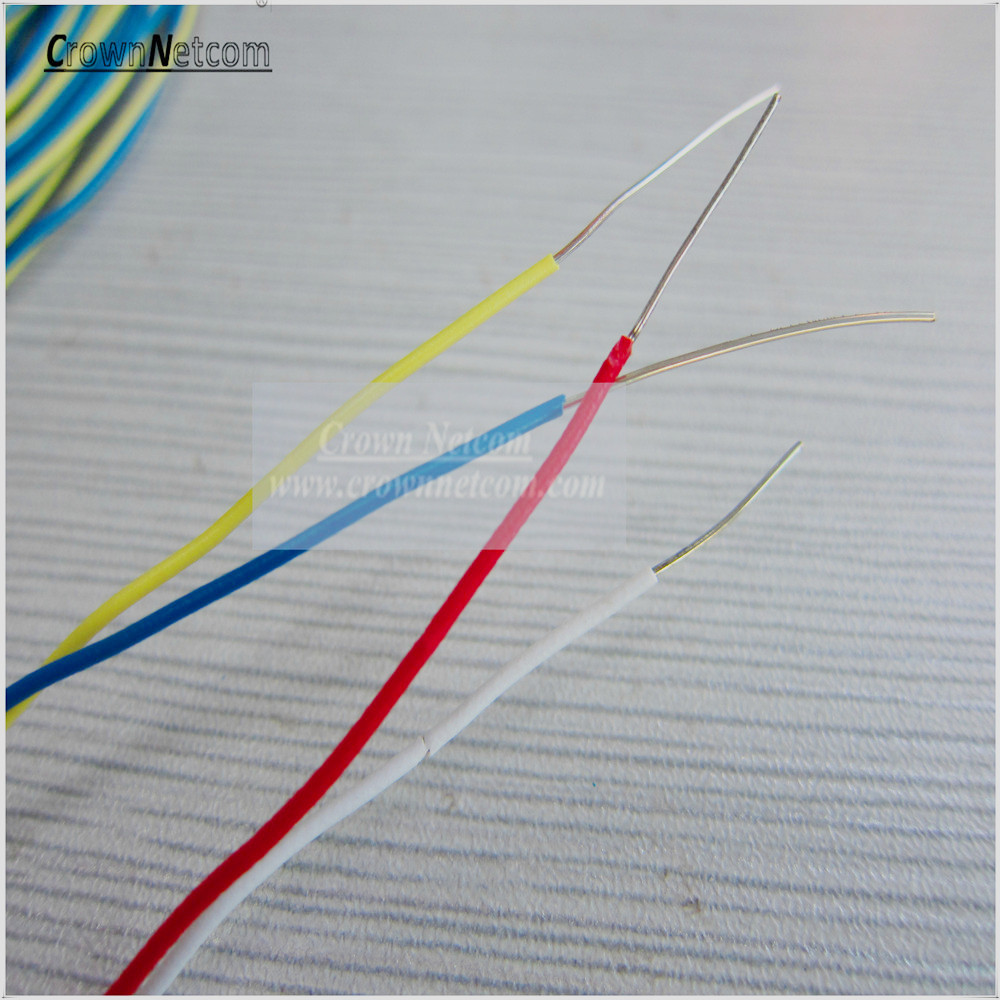

     Product Show:

    Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

    Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

    Cat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wiresCat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wiresCat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wiresCat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wiresCat3 Jumper Cable 0.5mm PVC Jacket Blue/Yellow Red/White Bare Copper/ Tinned Copper jumper wires

    Jumper Wire Packing:

    Inner packed in coils or drums,outer packed in carton box or pull out box or pallet,305m/box or 500m/drum ;or on your request.



    Delivery time:

    5-8days for one 40’HQ after receiving the deposit and usually completely finished within 10-15days.It also depends on the items and quantity.



    More:

    Copper Cabling
    The solution covers the below products and categories :
    LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
    Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
    Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
    Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
    Faceplates and boxes
