| Place of Origin: | Shenzhen (info at crownnetcom.com) |
| Brand Name: | Neutral/OEM (info at crownnetcom dot com) |
| Certification: | CE,ROHS,ISO |
| Model Number: | CNCJMCT3 |
| Minimum Order Quantity: | 100rolls |
|---|---|
| Price: | 0.051-0.069/m |
| Packaging Details: | box /wooden drum |
| Delivery Time: | 3-7days/500boxes (info at crownnetcom dot com) |
| Payment Terms: | T/T Western Union |
| Supply Ability: | 2000boxes/week |
| Minimum Quantity Order: | 100Rolls | Cat3 Jumper Wire Jacket: | PVC |
|---|---|---|---|
| Cat3 Jumper Wire Color: | Red White,yellow White,yellow Black,etc | Cat3 Jumper Wire's Other Name: | Cat3 Jumper Cables |
1.Outer jacket: PVC(Polyvinyl Chloride) in accordance with international standard.
2.Conductor: solid bare copper, tinned copper, the conductor size can be 0.32mm/0.4/0.5/0.6/0.63/0.7mm
3.Insulation: the copper wire which are parallel to each other, coated with polivinyl chloride with Red/White,Yellow/Blue,Blue/White color ,etc.
4. Cable assembly: 2 cores are twisted together to form a pair additional information for 0.6mm jumper wire
Construction:
| Conductor | Insulation | ||
| Material | Nom.O.D.(MM) | Material | Nom.O.D.(MM) |
| Bare Copper/Tinned Copper | 24AWG(0.5) | HDPE | 0.9 |
| Polyvinyl Chloride(PVC) | 1.1 | ||
| ITEM | Units | Value | |
| 0.4 | 0.5 | ||
| Conductor resistance,maximum,Mutual pairs capacitance | ohm/km(20°C) nF/km |
148 56 |
95 |
| Dielectric strenth(DC test voltage for 1 min.) | DC(V) | 1000 | |
| Insulation resistance,minimum | Mohm/km | 5000 | |
| Impedance Delay |
ohm s/km |
100±15 1MHz≤6.4 |
|
| 10MHz≤5.7 | |||

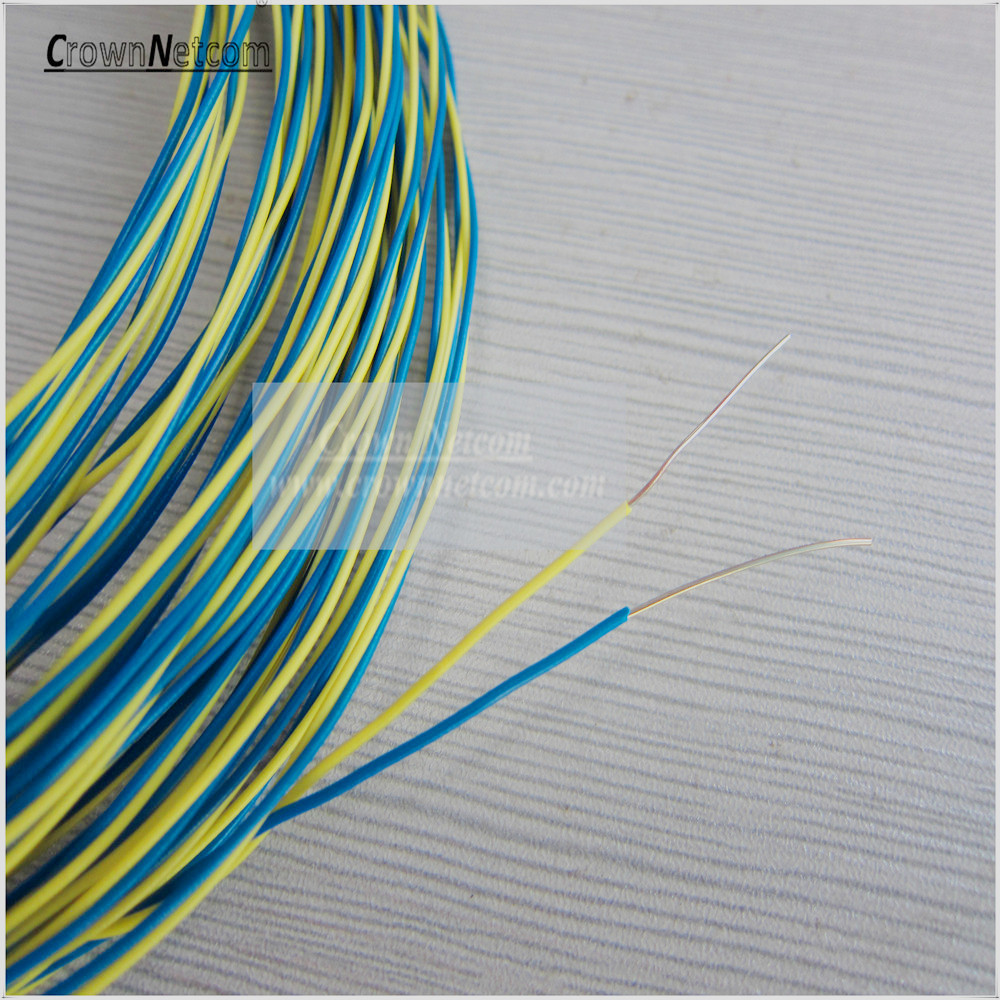

Product Show:
Jumper Wire Packing:
Inner packed in coils or drums,outer packed in carton box or pull out box or pallet,305m/box or 500m/drum ;or on your request.
Delivery time:
5-8days for one 40’HQ after receiving the deposit and usually completely finished within 10-15days.It also depends on the items and quantity.
More:
Copper Cabling
The solution covers the below products and categories :
LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Faceplates and boxes
