| Place of Origin: | shenzhen |
| Brand Name: | Neutral |
| Certification: | CE,ROHS,ISO |
| Model Number: | Multi Purpose Distribution Fiber Cable |
| Minimum Order Quantity: | 5KM |
|---|---|
| Price: | 0.25-4 |
| Packaging Details: | 1KM/REEL |
| Delivery Time: | 7-14days |
| Payment Terms: | T/T Western Union |
| Supply Ability: | 50KM/WEEK |
| Product Name: | Indoor Multi Purpose Break-Out Fiber Cable |
|---|
Indoor Multi Purpose Break-Out Fiber Cable
Description:

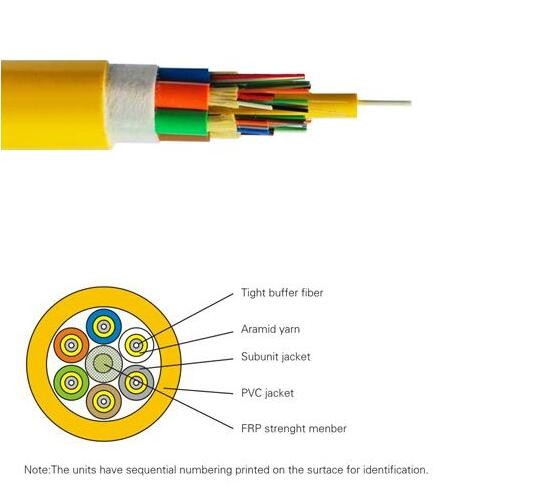

02~12 fiber, Stranded structure, FRP strength member, 1-fiber subunit (Φ900μm Tight buffer, Aramid yarn), PVC Jacket.
indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.
Standards:
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.
Cable Code:
|
|||||||||||||||||||||||||||||
Mechanical Characteristics:
| Tensile Strength | Long term | 200N |
| Short term | 660N | |
| Crush Resistance | Long term | 300N/100mm |
| Short term | 1000N/100mm | |
| Bending Radius | Dynamic |
20×D ( Cable Diameter) |
| Static |
10×D ( Cable Diameter) |
Optical Charateristics:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental Characteristics:
| Transport Temperature | -20℃~+60℃ |
| Storage Temperature | -20℃~+60℃ |
| Installation Temperature | -5℃~+50℃ |
| Operating Temperature | -20℃~+60℃ |
For any further questions,welcome you to contact us at any time!
