| Place of Origin: | shenzhen |
| Brand Name: | Neutral |
| Certification: | CE,ROHS,ISO |
| Model Number: | MGSTV MINING FIBER CABLE |
| Minimum Order Quantity: | 3KM |
|---|---|
| Price: | 0.89-1.31 |
| Packaging Details: | 1KM/REEL |
| Delivery Time: | 7-14days |
| Payment Terms: | T/T Western Union |
| Supply Ability: | 30KM/WEEK |
| Product Name: | Mining MGSTV FIBER CABLE |
|---|

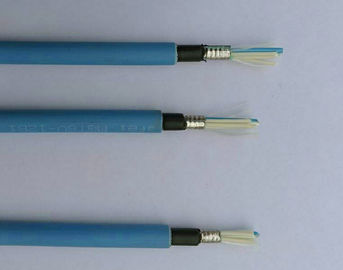

Singlemode 48core Mining Flame-Retareant Fiber Optic Cable Cable de fibra minera
DESCRIPTION:

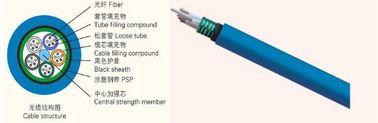

In the standard flame-resistant optical fiber cable for mine use, the fibers are positioned in a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. are filled with water proof nonwoven fabrics of high density.

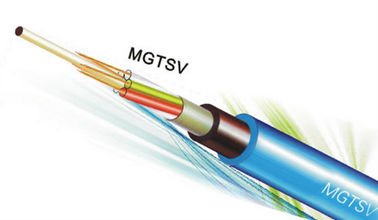

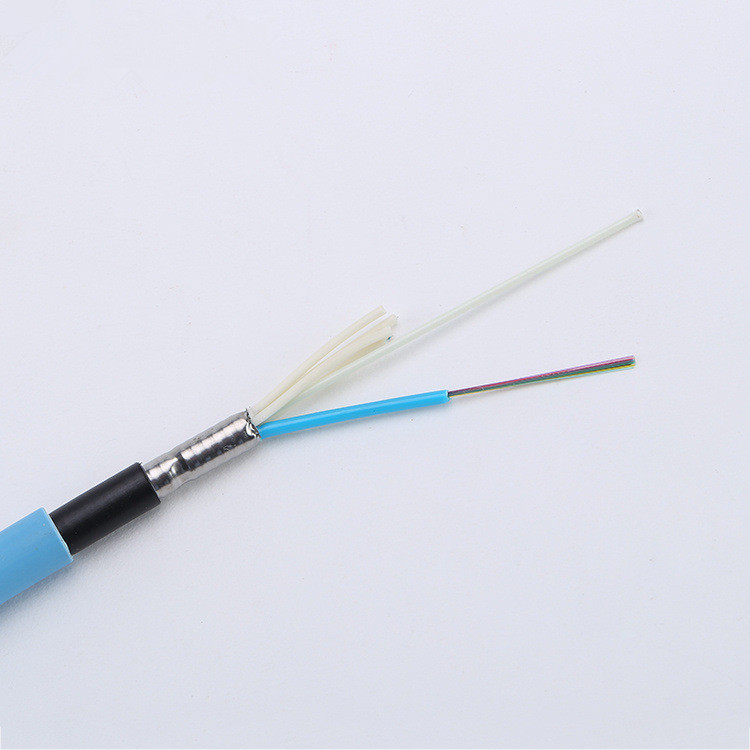

A steel wire, sometimes sheathed with polythene for cable with high fiber count, locates in the center of core as a metallic strengthening member. Tubes are stranded around the strengthening member into a compact and circular cable core. The PSP is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress. Then a PE sheath is applied.At last, the cable is completed with a blue PVC sheath.
CHARACTERISTICS:
1. Proper design and precise control of fiber excess in the loose tube render good tensile strength and temperature performance.
2. The flame-resistant blue PVC sheath provides excellent effect of antiflaming.
3. metallic strengthening member,armored structure,steel-PE bonded sheath and PVC outer sheath offers good mechanical performance.
Standard:
Comply with Standard Q62170406-MG001-2011 as well as MT386-1995; and passes MA certification.
Application:
Ruggedized cable designs specifically intended for mines, mine shafts and cable trays used for mining applications. Certified for use by national authorities.
|
Cable type |
Fiber count |
Tubes |
Fillers |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
|
MGTSV-2-6 |
2-6 |
1 |
4 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-8-12 |
8-12 |
2 |
3 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-14-18 |
14-18 |
3 |
2 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-20-24 |
20-24 |
4 |
1 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-26-30 |
26-30 |
5 |
0 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV -32-36 |
32-36 |
6 |
0 |
10.0 |
131 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-38-48 |
38-42 |
4 |
1 |
11.0 |
188 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV -50-60 |
44-48 |
5 |
0 |
11.8 |
188 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-62-72 |
50-60 |
6 |
0 |
12.4 |
204 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-74-84 |
62-72 |
7 |
1 |
13.8 |
255 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-86-96 |
74-84 |
8 |
0 |
13.8 |
255 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-98-108 |
86-96 |
9 |
1 |
15.6 |
284 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-110-120 |
98-108 |
10 |
0 |
15.6 |
284 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-122-132 |
110-120 |
11 |
1 |
17.4 |
340 |
600/1500 |
300/1000 |
10D/20D |
|
MGTSV-134-144 |
122-132 |
12 |
0 |
17.4 |
340 |
600/1500 |
300/1000 |
10D/20D |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
