|Place of Origin:||China|
|Minimum Order Quantity:||50|
|Product Name:||Fiber Optic Splice Closure||Core:||12 24 48 96|

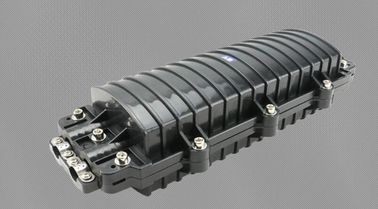

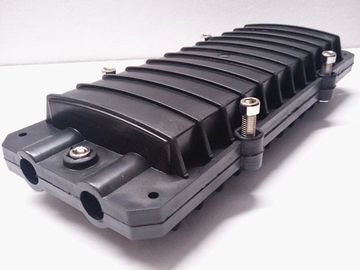

Telecommunication Equipment Horizontal ABS material Fiber Optic Splice Closure
The closure casing is made of quality engineering plastics, and of good performance of ant-ierosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP66.

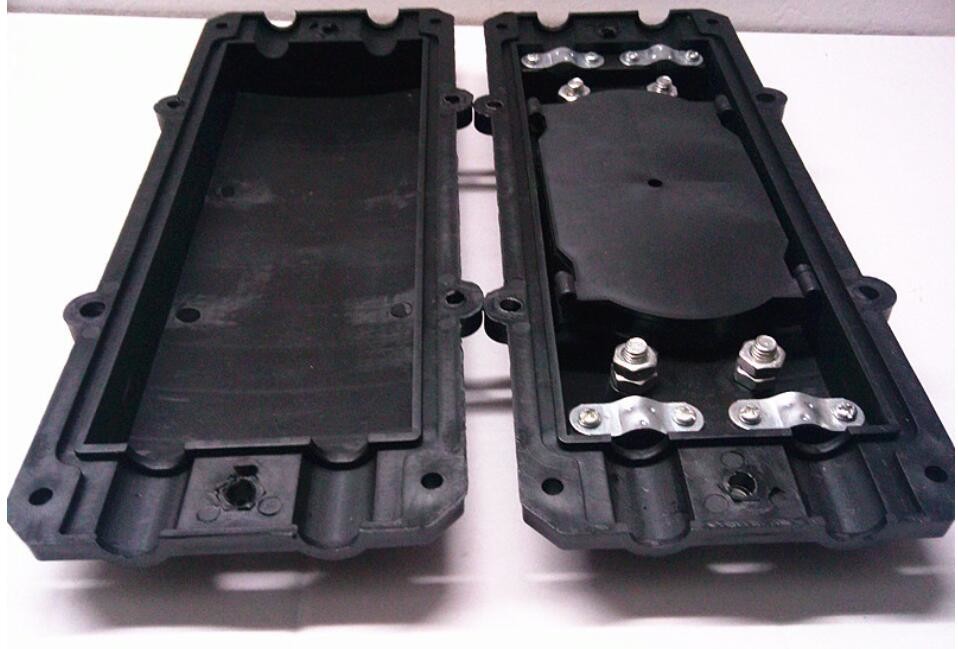

The closures are applicable to ribbon type optical cable and common optical cable. The splice trays inside the closure are turnable like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.
The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple.The air valve is provided for the closure and used to check the sealing performance.
Dimensions and Capability:
Other performances are all in accordance with the requirement of standard YD/T814-1998.
