Place of Origin: | shenzhen |
Brand Name: | Neutral/OEM (info at crownnetcom dot com) |
Certification: | CE,ROHS,ISO |
Model Number: | CNCRJ45CAT6aP |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | 0.5-0.7 |
Packaging Details: | PP bag |
Delivery Time: | 3-7days (info at crownnetcom dot com) |
Payment Terms: | T/T Western Union |
Supply Ability: | 300000pcs/week |

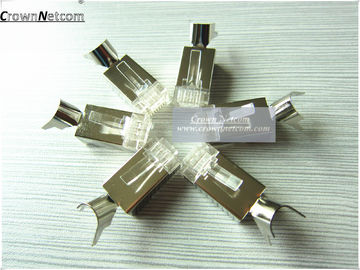

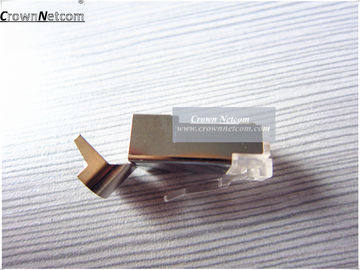

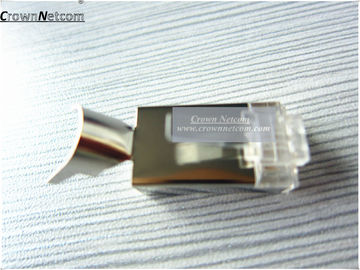

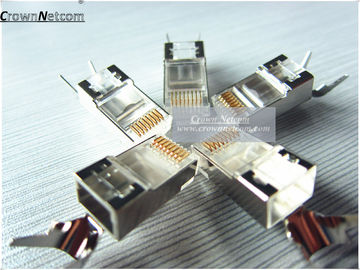

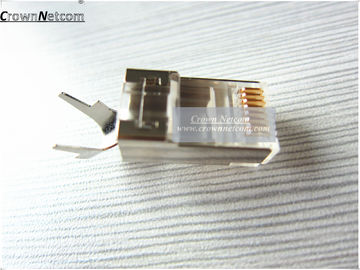

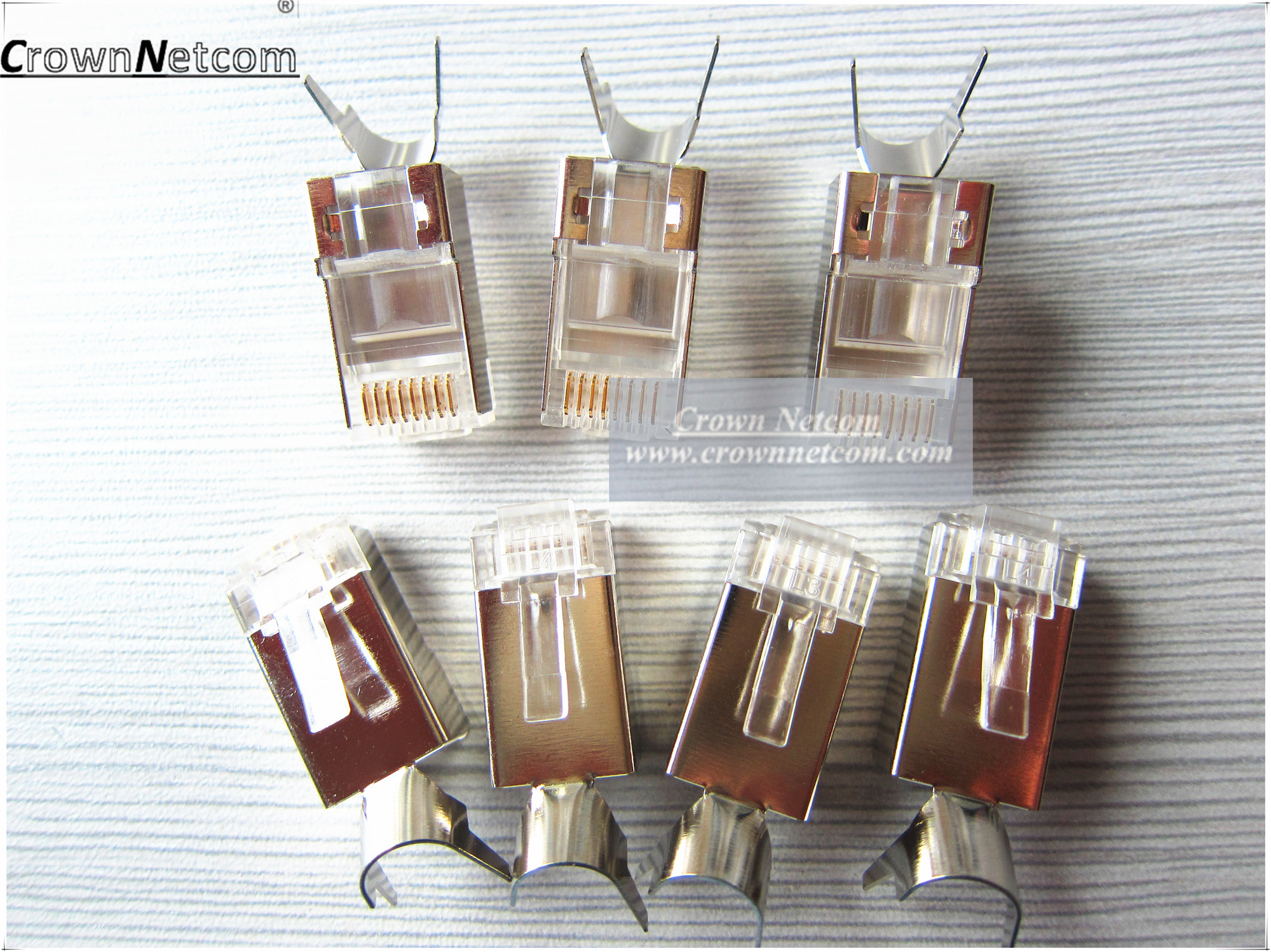

Product Name: | Cat6a Connectors |
---|
SPECIFICATIONS
RoHS Compliant.
Meet FCC CFR 47 part 68 and IEC 603-7.
Housing: Polycarbonate (PC), UL 94-0 Rated.
Contact Blade: Phosphor bronze, selective Gold over Nickel plating.
MECHANICAL
Plug Mating Life: 750-Cycle.
Cable to Plug Tensile Force: 20 lbs (89N)
Type of Contact Blade: 2-Prong for stranded wires, Angled 2-Prong for solid wires, 3-Prong for both stranded & solid wires.
ELECTRICAL
Current Rating: 1.5Amps.
Insulation Resistance: 500 megohms minimum.
Contact Resistance: 20 milliohms maximum.
Dielectric Strength Voltage: 1000V AC (RMS 60Hz).
FEATURES
It has solved the problem of how to separate wires for assignment without harming Category 6 performance. We proudly introduce the 2-piece type fully shielded plugs.
EASY-TO-ASSEMBLE
All you have to do is strip the cable, insert the wires into our specially designed Insert Unit, cut the surplus wires and snap the full Insert Unit into the plug housing.
MUCH BETTER NEXT PERFORMANCE
With the Insert Unit you could only untwist a very short length of wire (7mm), which means you will get better NEXT for patch cord. In addition,
our specially designed strain relief boot holds the cable firmly without flattening or affecting twisted wires.
