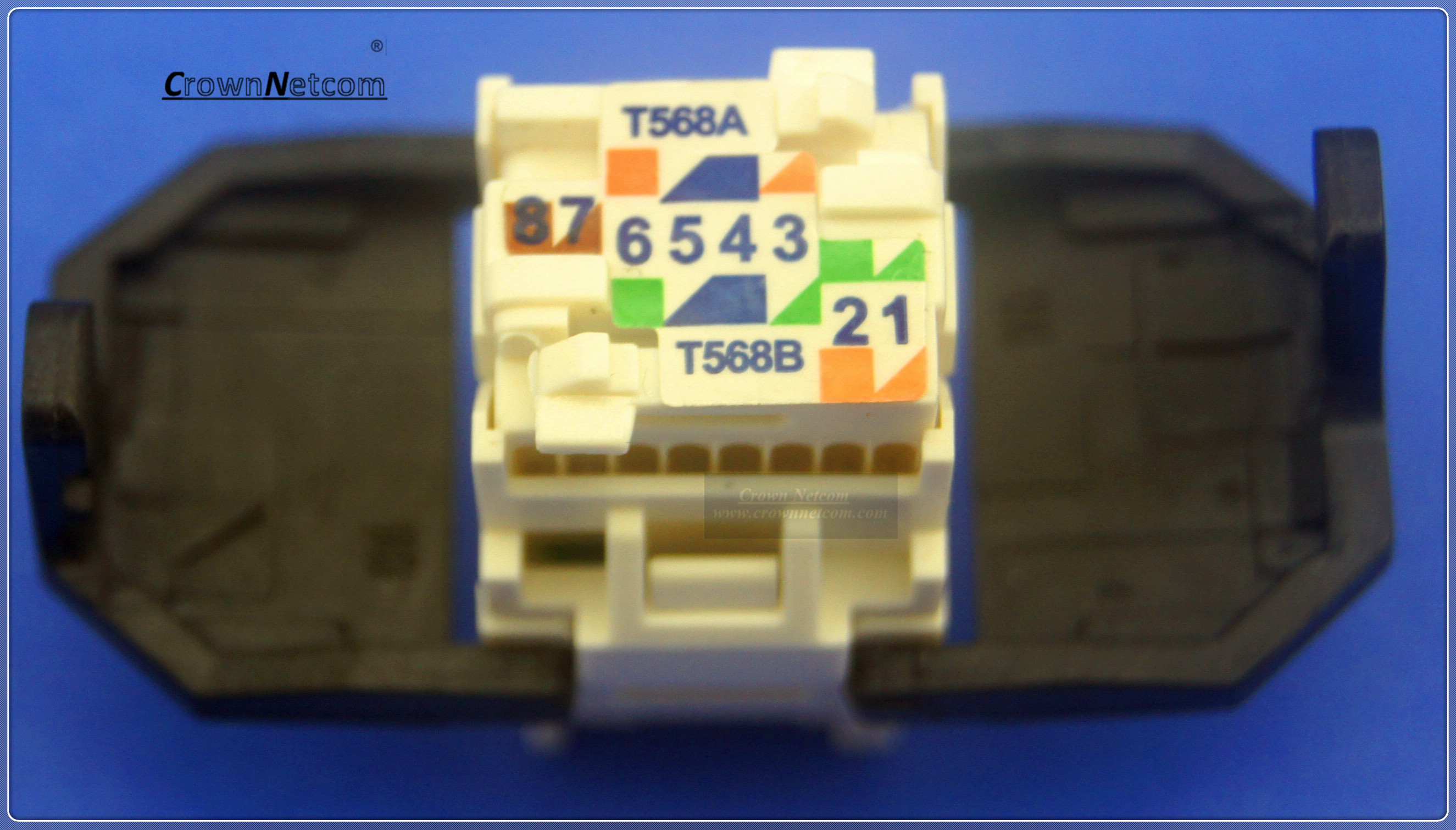

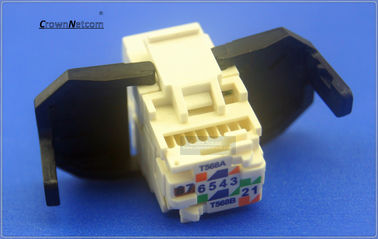

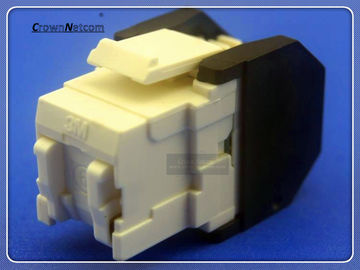

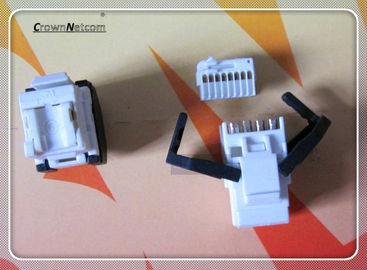

Name: 3M Cat6 Jack Module RJ45 UTP Jacks Pass Fluke test
Brand: Crown Netcom Technology Ltd
SKU: CNCP63M
Price: 1.70 USD
Availability: InStock

Home Products Copper Cabling Accessories

3M Cat6 Jack Module RJ45 UTP Jacks Pass Fluke test

Product Details:

Place of Origin:	Shenzhen (info at crownnetcom.com)
Brand Name:	Neutral/OEM (info at crownnetcom dot com)
Certification:	CE,ROHS,ISO
Model Number:	CNCP63M

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	1.7-3.2
Packaging Details:	PP bag
Delivery Time:	3-7days/500pcs (info at crownnetcom dot com)
Payment Terms:	T/T Western Union
Supply Ability:	30000pcs/week

Contact Now

Detailed Product Description

3M Cat6 Jack Module RJ45 UTP Jacks Pass Fluke test

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Termination: Krone- 110- DUAL Type

Electrical:

According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:

Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

3M Cat6 Jack Module RJ45 UTP Jacks Pass Fluke test
