Place of Origin: | shenzhen |
Brand Name: | Neutral |
Certification: | CE,ROHS,ISO |
Model Number: | FCUPC |
Minimum Order Quantity: | 30pcs |
---|---|
Price: | 0.76-0.81 |
Packaging Details: | 1pcs/ppbag |
Delivery Time: | 7-14days |
Payment Terms: | T/T Western Union |
Supply Ability: | 50000pcs/WEEK |
Product Name: | FCUPC Pigtails | FCUPC Pigtails: | YELLOW |
---|---|---|---|
FCUPC Pigtails Mode: | 9/125 | FCUPC Pigtails Type: | 12cores SM |
FCUPC Pigtails OEM: | Available |

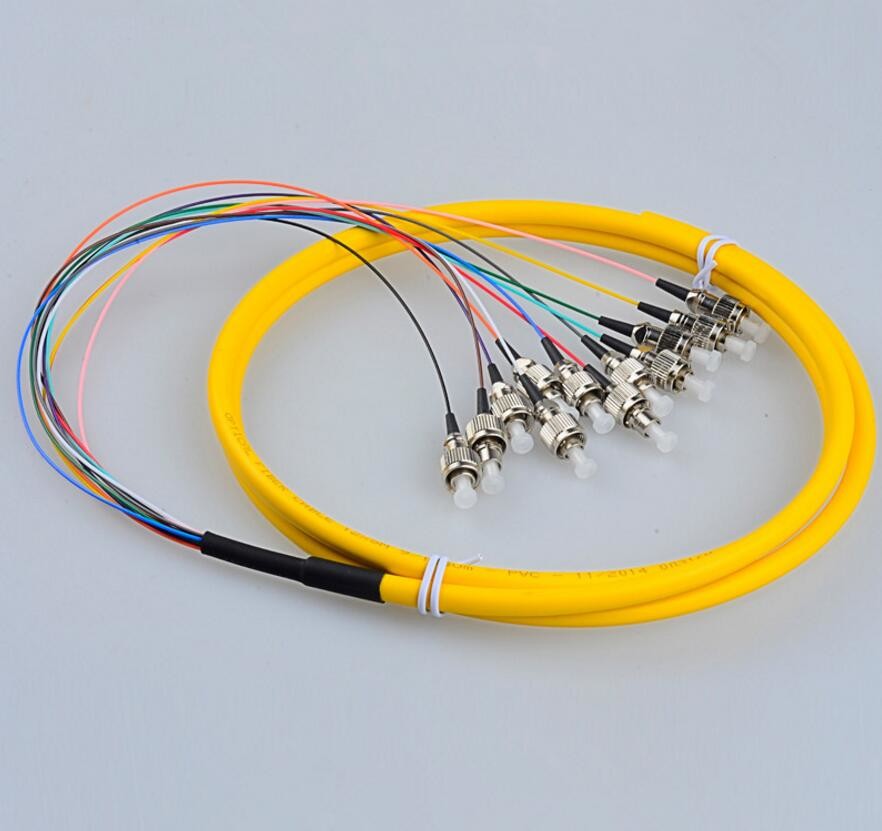

Telecom Standard FC Pigtails FC/UPC SM Fiber Patch Cords 9/125 12Cores Fiber Pigtails 12 Core Patch Cables
Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
Repeatability (dB) | ≤0.1 | |||
Durability(1/Matings) | ≥500 | |||
Operation Temperature (°C) | -25~+70 | |||
Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
diameter | 0.9mm 2.0mm, 3.0mm etc | |||
Cable material | PVC, LSZH | |||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
OEM Service Available
More:
Copper Cabling
The solution covers the below products and categories :
LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Faceplates and boxes
