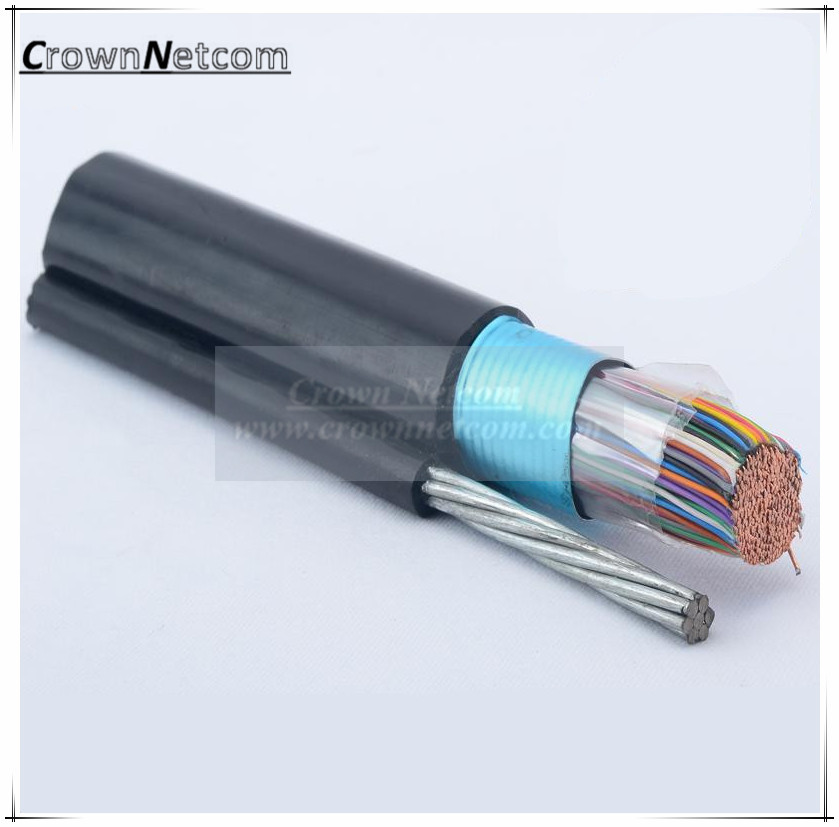

19,22,24 and 26awg anneal copper self-supporting aerial cable category 3

Core Construction:
Conductors:
• Solid, annealed copper; sizes 19, 22
and 24 AWG
Insulation:
• Solid, high density polyethylene, color- coded in
accordance with telephone industry standards
Twisted Pairs:
• Insulated conductors are twisted into pairs with
varying lay lengths to minimize crosstalk
Core Assembly:
• 25 pairs and less: pairs are assembled together in
a single group
• More than 25 pairs: pairs are arranged in groups,
each group having a color-coded unit binder
Core Wrap:
• Non-hygroscopic dielectric tape applied
longitudinally with an overlap
Figure 8 Sheath:
Aluminum Shield:
• Corrugated, copolymer coated, 0.008" aluminum
tape applied longitudinally with an overlap
Support Messenger:
• A 1/4", 7 strand, extra high strength galvanized
steel wire, fully flooded for corrosion protection
Jacket:
• Black, linear low density polyethylene is jacketed
in an integral extrusion with the shielded core
and support messenger to form a “Figure 8”
configuration
Application(s):
• Intended for aerial installation
Compliances:
• Formerly RDUP (RUS) Specification PE-38
• RoHS Compliant (effective 1/1/10)
• ANSI/ICEA S-85-625-2007
Packaging:
• Standard lengths are shipped on non-returnable
wood reels
• Non-standard packaging is available upon request
