    Product Details:

    Place of Origin: Shenzhen (info at crownnetcom.com)
    Brand Name: Neutral/OEM (info at crownnetcom dot com)
    Certification: CE,ROHS,ISO
    Model Number: CNCCAT3ACD

    Payment & Shipping Terms:

    Minimum Order Quantity: 10M
    Price: 1.31-1.75
    Packaging Details: PP bag
    Delivery Time: 3-7days/500boxes (info at crownnetcom dot com)
    Payment Terms: T/T Western Union
    Supply Ability: 2000boxes/week
    Contact Now
    Detailed Product Description
    Type: Cat 3 Minimum Quantity Order: 1000M
    Product Name: Communication Cable

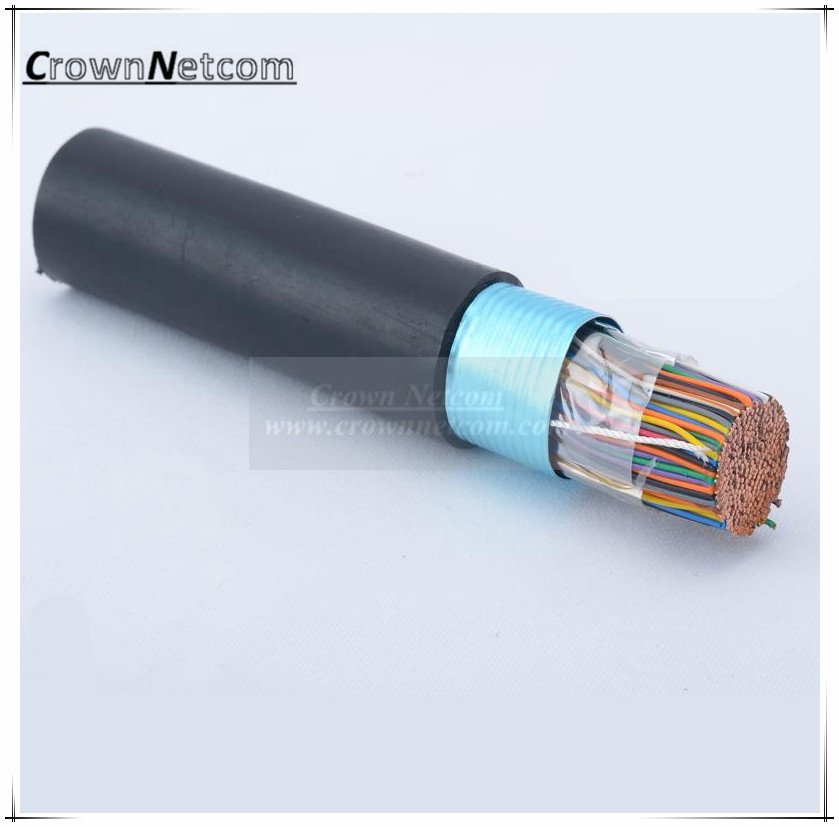

    19,22,24 and 26awg anneal copper aluminium cable duct category 3

    Jelly Filled air core telephone cable

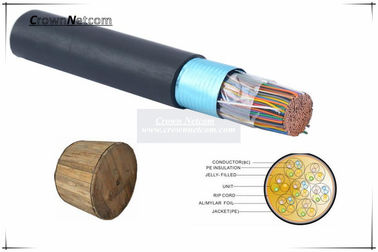

    Core Construction:
    Conductors:
    • Solid, annealed copper; sizes 19, 22, 24 and 26 AWG
    InsuIation:
    •Option 1 Solid, high density polyethylene, color- coded in accordance with telephone
    industry standards
    •Option 2 Conductors are dual insulated with an inner layer of foamed,natural polyolefin
    covered by an outer layer of solid,colored polyolefin. The conductor insulation is color
    coded in accordance with industry standards
    Twisted Pairs:
    • Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk
    Core Assembly:
    • 25 pairs and less: pairs are assembled together in a single group
    • More than 25 pairs: pairs are arranged in groups, each group having a color-coded unit
    binder
    • 1200 pairs and larger are mirror image color code
    Filling Compound:
    •The core assembly is filled with an 80 degree petroleum compound, completely filling
    the interstices between the pairs and under the core wrap
    Core Wrap:
    • Non-hygroscopic dielectric tape applied Iongitudinally with an overlap
    Aluminum Shield:

    • Corrugated 0.008" aluminum tape applied Iongitudinally with an overlap
    Jacket:
    • Black, linear low density polyethylene
    Application(s):
    • Intended for aerial installation by attachment to a support strand
    Compliances:
    • Telcordia (Bellcore) Specification GR-421-CORE
    • RoHS Compliant (effective 1/1/10)
    Packaging:
    • Standard lengths are shipped on returnable steel reels or on non-returnable wood reels
    when requested
    • Non-standard packaging is also available
    Electrical specifications
    Average mutual capacitance at 1000 Mhz

    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3
    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3
    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3

    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3

    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3

    19,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 319,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 319,22,24 and 26awg anneal copper aluminium cable duct Jelly Filled air core category 3
