| Place of Origin: | Shenzhen (info at crownnetcom.com) |
| Brand Name: | Neutral/OEM (info at crownnetcom dot com) |
| Certification: | CE,ROHS,ISO |
| Model Number: | CNCP6 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 0.92-1.3 |
| Packaging Details: | PP bag |
| Delivery Time: | 3-7days/500pcs (info at crownnetcom dot com) |
| Payment Terms: | T/T Western Union |
| Supply Ability: | 30000pcs/week |
| Color: | Blue,Yellow,Grey,Red,Purple,Green,White,Black | Minimum Quantity: | 100pcs |
|---|---|---|---|
| Product Name: | Cat6 Patch Kable | Contact: | Info At Crownnetcom.com |
| Cat6 Patch Cables Length: | 2m 1m 3m 5m 10m |

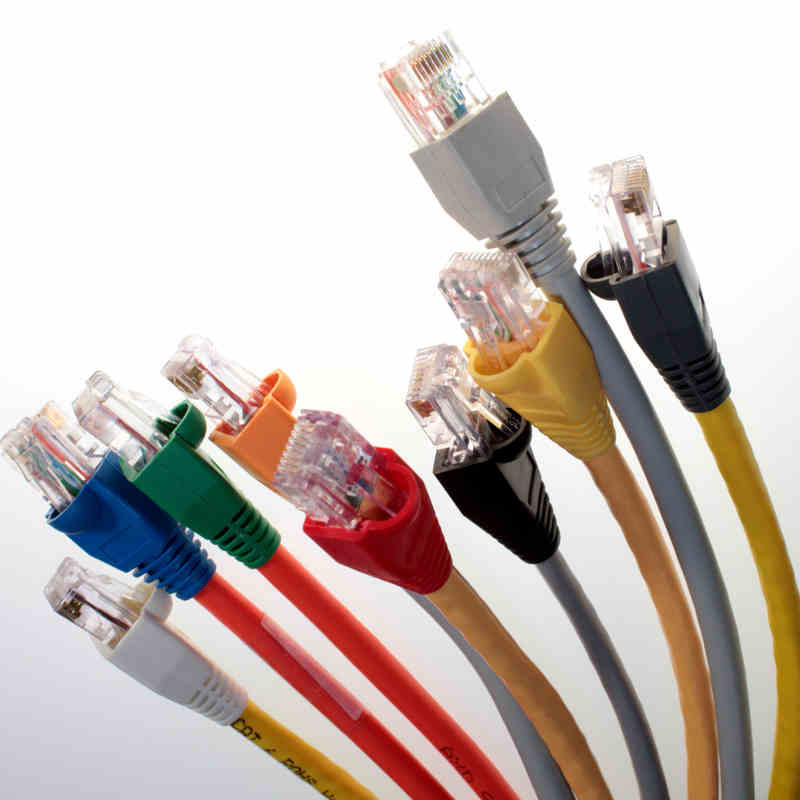

RJ45 Cat6 Patch Cords UTP 26AWG Stranded Copper Category 6 Patch Leads With Different Lengths & Colors Cat6 Kably
Specification
Conductor Solid:Cat6 Patch Cord
Conductor stranded :(26AGW)
Conductor Material:.Copper
Cores/Pairs:8/4
Sheath:5.2±0.1mm PVC/ROHS/LSOH/PVC(UV)/PE
Insulation: High-density Polyethylene (HDPE)
Enhance connector: two-row RJ45 8P8C gold plating 30U”
Features:
Mechanical Properties
Insert times ≥1500 times
Contact stability 20mΩ max variation
Pin retentively ≥110N
Elongation:Min. 300%
Tensile strength:Min.1.68Kg/mm2
Ratted Temperature: -20 up to +75°C
Electrical Properties (at 20°C)
|
Conductor Resistance |
Max.9.38Ω/100m |
|
Resistance Unbalance |
Max.2% |
|
Insulation Resistance |
Max.150Ω/Km |
|
Mutual Capacitance |
Max.5600pF/100m |
|
Capacitance Unbalance |
Max.330pF/100m |
|
Impedance |
100±15 |
|
Spark Test |
2000v |
|
Velocity of Propagation |
67% |
Contact point plate 2.54mm nickel core plated gold 1.27mm
Frequency: 155MHz or 300Mhz
More:
Copper Cabling
The solution covers the below products and categories :
LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Faceplates and boxes
