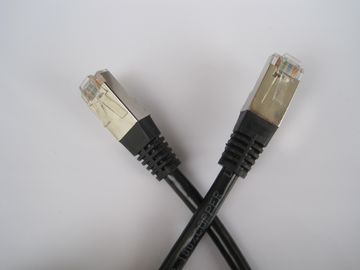

RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably

RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably

    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
    • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
  • RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably

    Product Details:

    Place of Origin: Shenzhen (info at crownnetcom.com)
    Brand Name: Neutral/OEM (info at crownnetcom dot com)
    Certification: CE,ROHS,ISO
    Model Number: CNCP6

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: 0.92-1.3
    Packaging Details: PP bag
    Delivery Time: 3-7days/500pcs (info at crownnetcom dot com)
    Payment Terms: T/T Western Union
    Supply Ability: 30000pcs/week
    Contact Now
    Detailed Product Description
    Color: Blue,Yellow,Grey,Red,Purple,Green,White,Black Minimum Quantity: 100pcs
    Product Name: Cat6 STP Patch Kable Contact: Info At Crownnetcom.com
    Keywords: Cat6 STP Patch Cord,Patch Cable,patch Lead Cat6 STP Patch Cords Jacket: PVC LSZH
    Cat6 STP Patch Colrd Conductor: Bare Copper

    RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Wire Category 6 Patch Cable With Different Lengths & Colors Cat6 Kably

    Specification

    • Conductor Solid:Cat6 Patch Cord

    • Conductor stranded :(26AGW)

    • Conductor Material:.Copper

    • Cores/Pairs:8/4

    • Shielding Layer: Al-Foil Layer+Al-Mg/Copper wire Braiding Layer

    • Sheath:5.2±0.1mm PVC/ROHS/LSOH/PVC(UV)/PE

    • Insulation: High-density Polyethylene (HDPE)

    • Enhance connector: two-row RJ45 8P8C gold plating 30U”

    Features:



    Mechanical Properties



    Insert times ≥1500 times



    Contact stability 20mΩ max variation



    Pin retentively  ≥110N



    Elongation:Min. 300%



    Tensile strength:Min.1.68Kg/mm2



    Ratted Temperature: -20 up to +75°C







    Electrical Properties (at 20°C)



    Conductor Resistance

    Max.9.38Ω/100m

    Resistance Unbalance

    Max.2%

    Insulation Resistance

    Max.150Ω/Km

    Mutual Capacitance

    Max.5600pF/100m

    Capacitance Unbalance

    Max.330pF/100m

    Impedance

    100±15

    Spark Test

    2000v

    Velocity of Propagation

    67%







    Contact point plate 2.54mm nickel core plated gold 1.27mm



    Frequency: 155MHz or 300Mhz

    RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably

    RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 KablyRJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 KablyRJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 KablyRJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 KablyRJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably



    More:

    Copper Cabling
    The solution covers the below products and categories :
    LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
    Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
    Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
    Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
    Faceplates and boxes



    RJ45 Cat6 Patch Cords STP 26AWG Stranded Copper Category 6 STP Patch Cables With Different Lengths & Colors Cat6 Kably
