| Place of Origin: | shenzhen |
| Brand Name: | Neutral |
| Certification: | CE,ROHS,ISO |
| Model Number: | LC/LC |
| Minimum Order Quantity: | 30pcs |
|---|---|
| Price: | 0.76-0.81 |
| Packaging Details: | 1pcs/ppbag |
| Delivery Time: | 7-14days |
| Payment Terms: | T/T Western Union |
| Supply Ability: | 50000pcs/WEEK |
| Product Name: | MPO Fiber Patch Cords | MPO Fiber Patcch Cord Color: | Blue |
|---|---|---|---|
| MPO Fiber Patch Cords Mode: | SM Or MM | MPO Fiber Patch Cords Other Name: | Armored Fiber Patch Cables |
| MPO Fiber Patch Cords OEM: | Available |

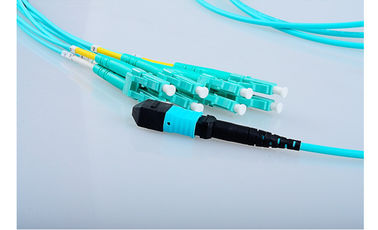

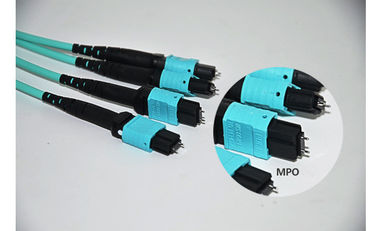

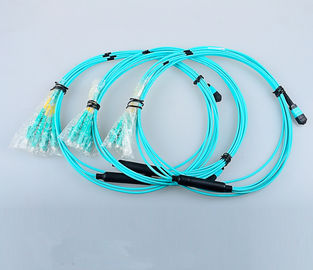

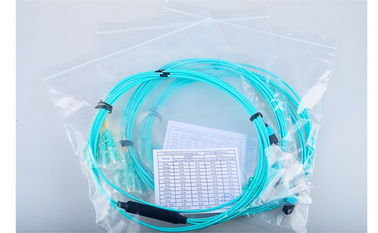

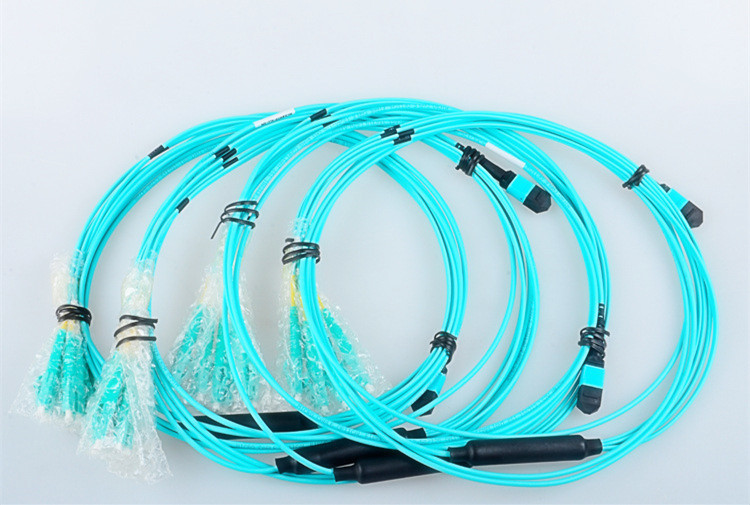

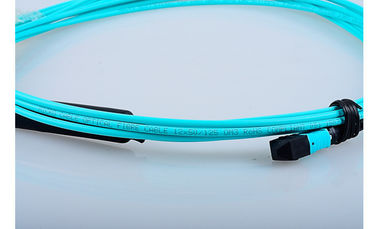

Telecom Standard MPO-LC MM OM3 Fiber Patch Cord 8 Cores Fiber Jumpers
MPO products’ Standard:
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Specification:
MPO patch cord’s Specification:
| MPO/MTP’s spec items. |
Single mode (UPC Flat polish, APC 8 degree polish) |
Multimode (PC Flat polish) |
| Insertion loss |
Standard loss≤0.7dB Low loss≤0.35dB |
Standard loss≤0.5dB Low loss≤0.35dB |
| Return loss | ≥55dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
More:
Copper Cabling
The solution covers the below products and categories :
LAN cables: Cat5e, Cat6, Cat6A and Cat7 UTP, FTP,SFTP and SSTP
Patch cords: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Patch panels: Cat5e, Cat6 and Cat6A UTP and FTP(STP) type(loaded and blank),12port,16port,24port and 48port.
Keystone jacks: Cat5e, Cat6 and Cat6A UTP and FTP(STP)
Faceplates and boxes
