    Product Name: Outdoor Non-Metallic Strength Member Armored Fiber Cable Fibra Cable GYFTA53

    Outdoor Non-Metallic Strength Member Armored Fiber Cable Fibra Cable GYFTA53

    Outdoor Non-Metallic Strength Member Armored Fiber Cable Fibra Cable GYFTA53


    ·Description

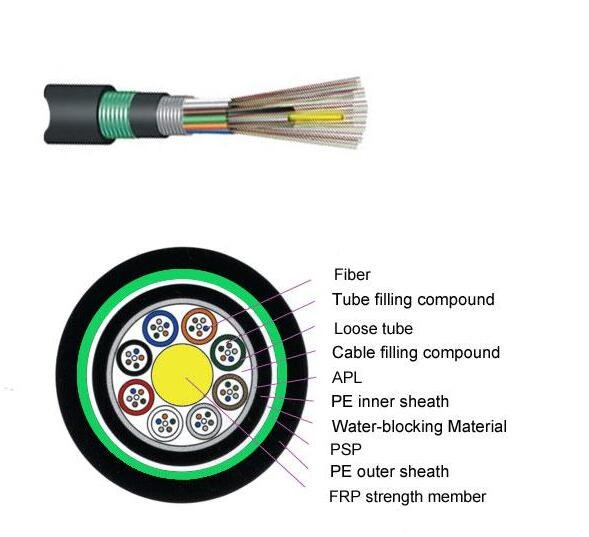

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.  After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

    ·Characteristics

            · Good mechanical and temperature performance

            · High strength looes tube that is hydrolysis resistant

            · Special tube filling compound ensure a critical protection of fiber

            · Crush resistance and flexibility

            · The following measures are taken to ensure the cable watertight:

                    - Single Fiber Reinforced Plastic as the central strength member

                    - Loose tube filling compound

                    - 100% cable core filling

                    - APL moisture barrier

                    - PSP enhancing moisture-proof

                    - Water-blocking material

    ·Standards

            GYFTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

    ·Optical Characteristics



    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20℃)

    @850nm





    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm





    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.36 dB/km

    ≤0.40 dB/km





    @1550nm

    ≤0.22 dB/km

    ≤0.23dB/km





    Bandwidth (Class A)

    @850nm





    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm





    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelengthλcc

    ≤1260nm

    ≤1480nm





    ·Technical Parameters

    Cable Type

    Fiber Count

    Tubes

    Fillers

    Cable Diameter

    mm

    Cable Weight kg/km

    Tensile Strength

    Long/Short Term N

    Crush Resistance

    Long/Short Term

    N/100mm

    Bending Radius

    Static
    /Dynamic

    mm

    GYFTA53-2~6

    2~6

    1

    7

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-8~12

    8~12

    2

    6

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-14~18

    14~18

    3

    5

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-20~24

    20~24

    4

    4

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-26~30

    26~30

    5

    3

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-32~36

    32~36

    6

    2

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-38~42

    38~42

    7

    1

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-44~48

    44~48

    8

    0

    16.8

    255

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-50~60

    50~60

    5

    3

    19.2

    320

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-62~72

    62~72

    6

    2

    19.2

    320

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-74~84

    74~84

    7

    1

    19.2

    320

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-86~96

    86~96

    8

    0

    19.2

    320

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-98~108

    98~108

    9

    1

    21.2

    380

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-110~120

    110~120

    10

    0

    21.2

    380

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-122~132

    122~132

    11

    1

    22.3

    415

    1000/3000

    1000/3000

    10D/20D

    GYFTA53-134~144

    134~144

    12

    0

    22.3

    415

    1000/3000

    1000/3000

    10D/20D

    Storage/Operating Temperature : -40℃ to + 70℃
