| Product Name: | Indoor 1 Core Simplex Indoor Fiber Cable |
|---|
Indoor 1 Core Simplex Indoor Fiber Cable
Description:

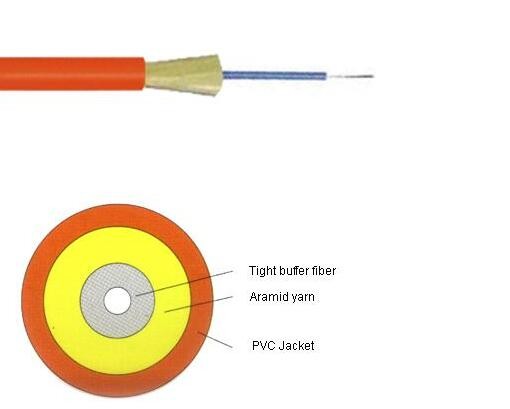

1fiber, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.
indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.
Characteristic:
· Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
· Good performance of flame-retardant
· Low induced attenuation within the operating temperature range
· Excellent geometrical dimension of the fiber
Application:
Data communication
· Making connector
· Installation: riser, plenum, etc.
· Places where waterproof is not strictly required
· Making jumper, pigtail and building distribution
Standards:
Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.
Cable Code:
|
Mechanical Characteristics:
|
||||||||||||||||||||||||||||
Optical Charateristics:
| 50/125μm | 62.5/125μm | G.652 | G.655 | ||
| Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310nm | ≤0.45dB/km | ≤0.50dB/km | |||
| @1550nm | ≤0.30dB/km | ≤0.50dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
| Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.25dB/km | ≤0.25dB/km | ||
| @1550nm | ≤0.10dB/km |
≤0.15dB/km |
|||
Environmental Characteristics:
| Transport Temperature | -20℃~+60℃ |
| Storage Temperature | -20℃~+60℃ |
| Installation Temperature | -5℃~+50℃ |
| Operating Temperature | -20℃~+60℃ |
