Name: FTTH Indoor Cable Optical Fiber Cables
Brand: Crown Netcom Technology Ltd
SKU: FTTH Indoor Cable
Price: 0.25 USD
Availability: InStock

Home Products Optical Fiber Cables

FTTH Indoor Cable Optical Fiber Cables

Product Details:

Place of Origin:	shenzhen
Brand Name:	Neutral
Certification:	CE,ROHS,ISO
Model Number:	FTTH Indoor Cable

Payment & Shipping Terms:

Minimum Order Quantity:	10KM
Price:	0.25-1
Packaging Details:	1KM/REEL
Delivery Time:	7-14days
Payment Terms:	T/T Western Union
Supply Ability:	50KM/WEEK

Contact Now

Detailed Product Description

Product Name:	FTTH Indoor Cable

FTTH Indoor Cable Optical Fiber Cables

FTTH Indoor Cable Optical Fiber Cables

·Description

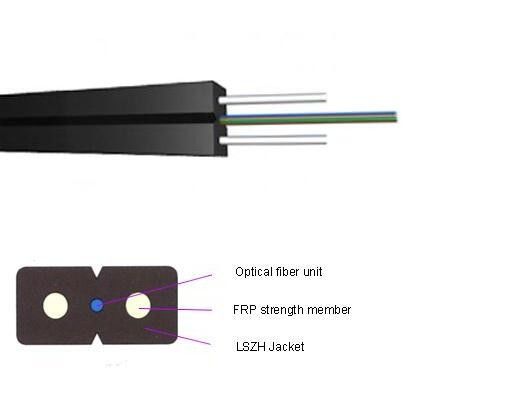

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

·Characteristics

        · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
          transmission property;
        · Two parallel FRP strength members ensure good performance of crush resistance to protect the
          fiber;
        · Simple structure, light weight and high practicability;
        · Novel flute design, easily strip and splice, simplify the installation and maintenance;
        · Low smoke, zero halogen and flame retardant sheath.

·Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

·Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.4±0.2)	8.5	30/60	300/1000	15/30
3	(2.0±0.2)×(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30

Storage/Operating Temperature : -20℃ to + 60℃
